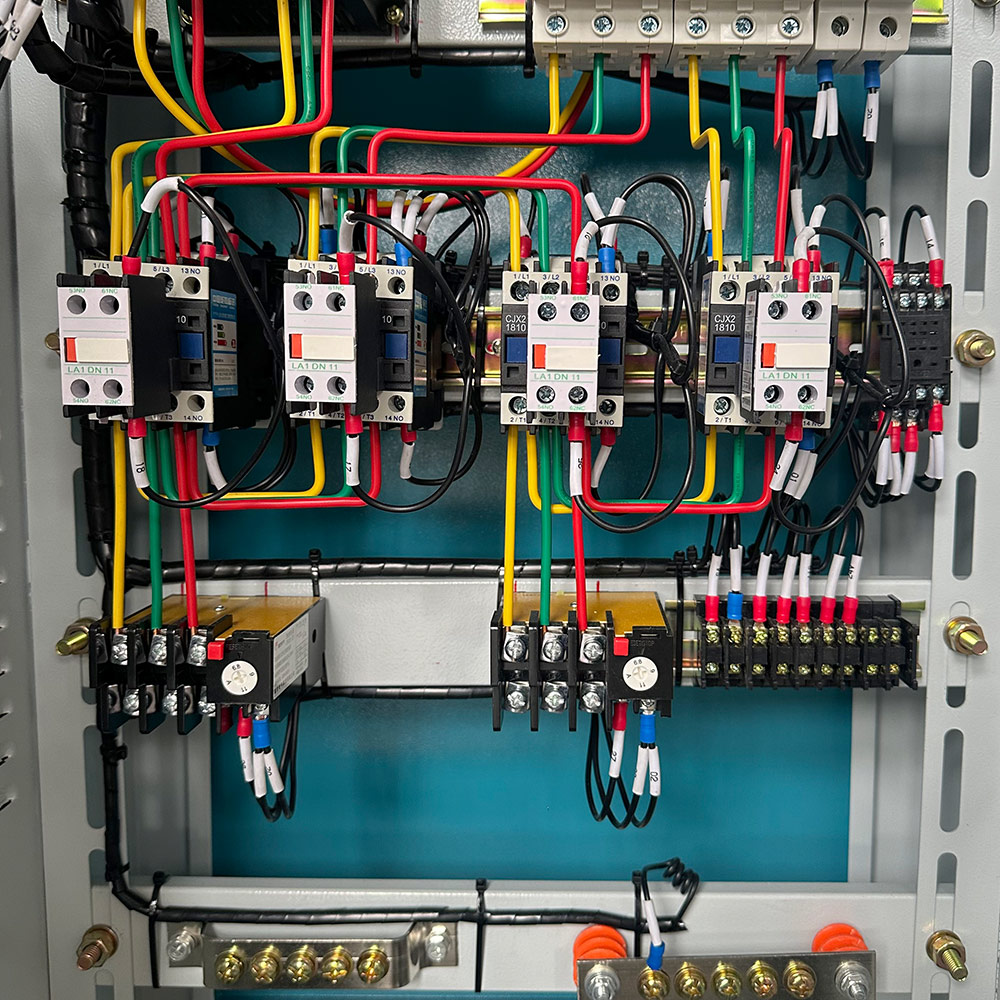

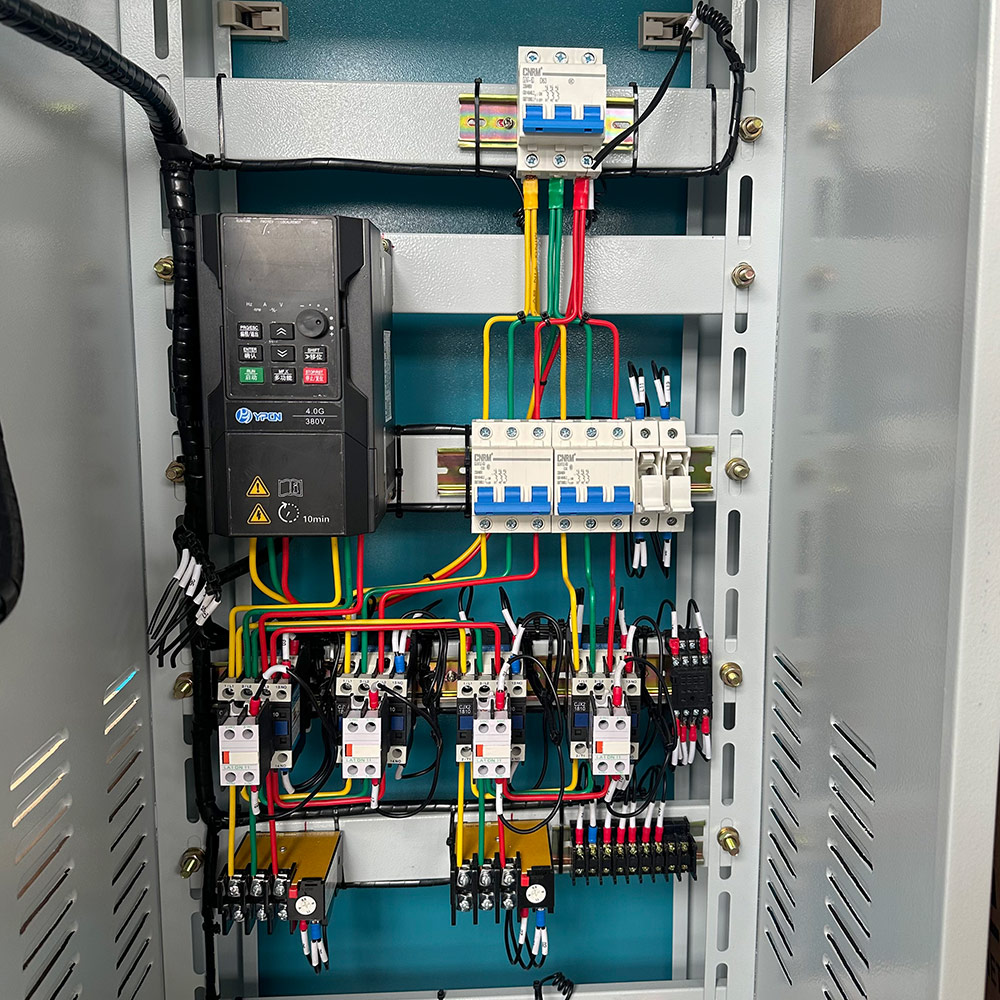

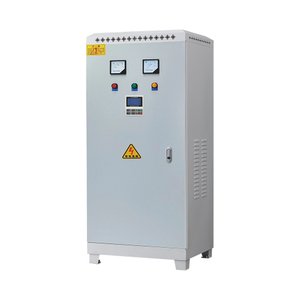

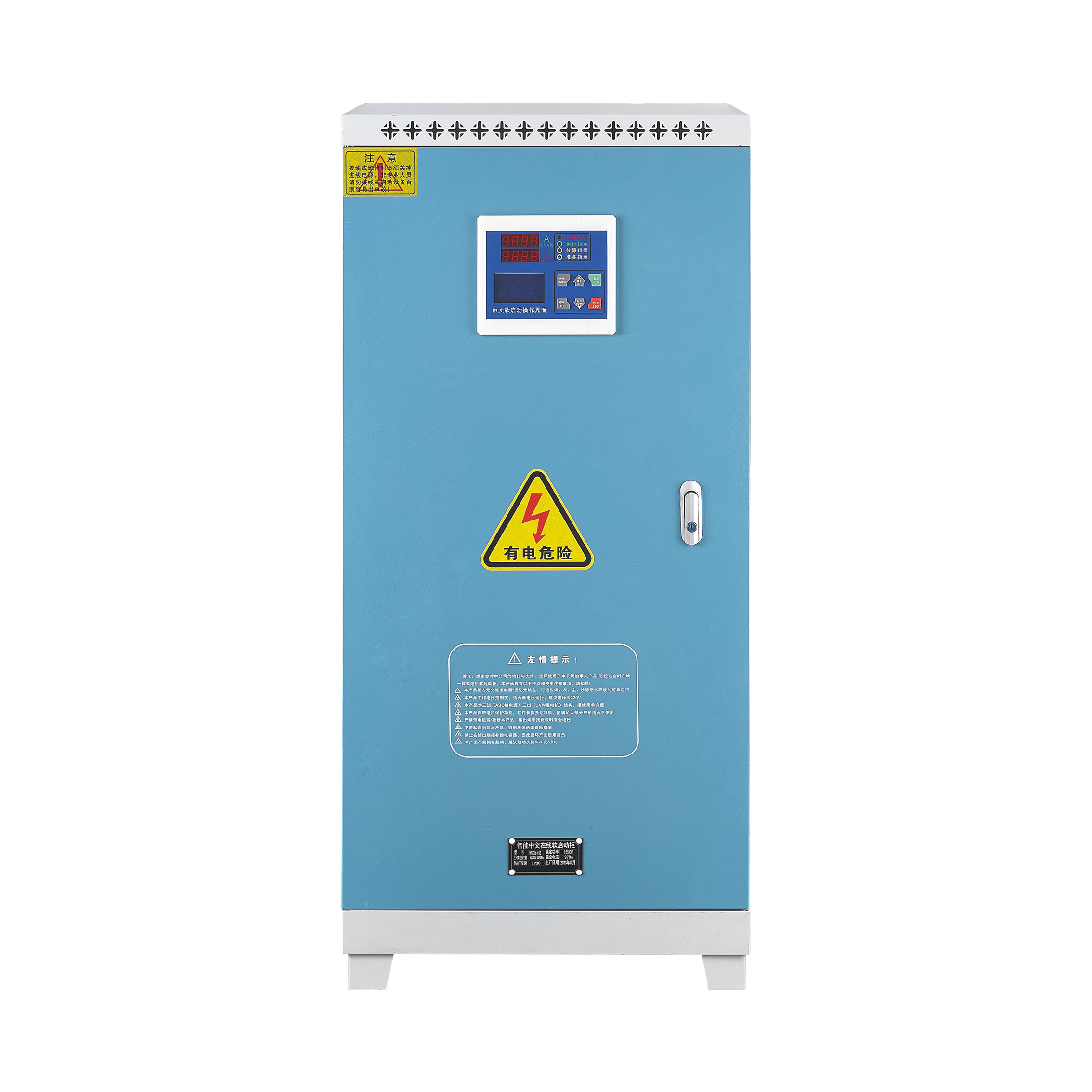

A soft starter cabinet is an electrical control system designed to reduce the initial inrush current and torque during the starting of electric motors, particularly large AC induction motors. This cabinet houses the soft starter device along with other necessary components to provide a complete motor starting and protection solution.

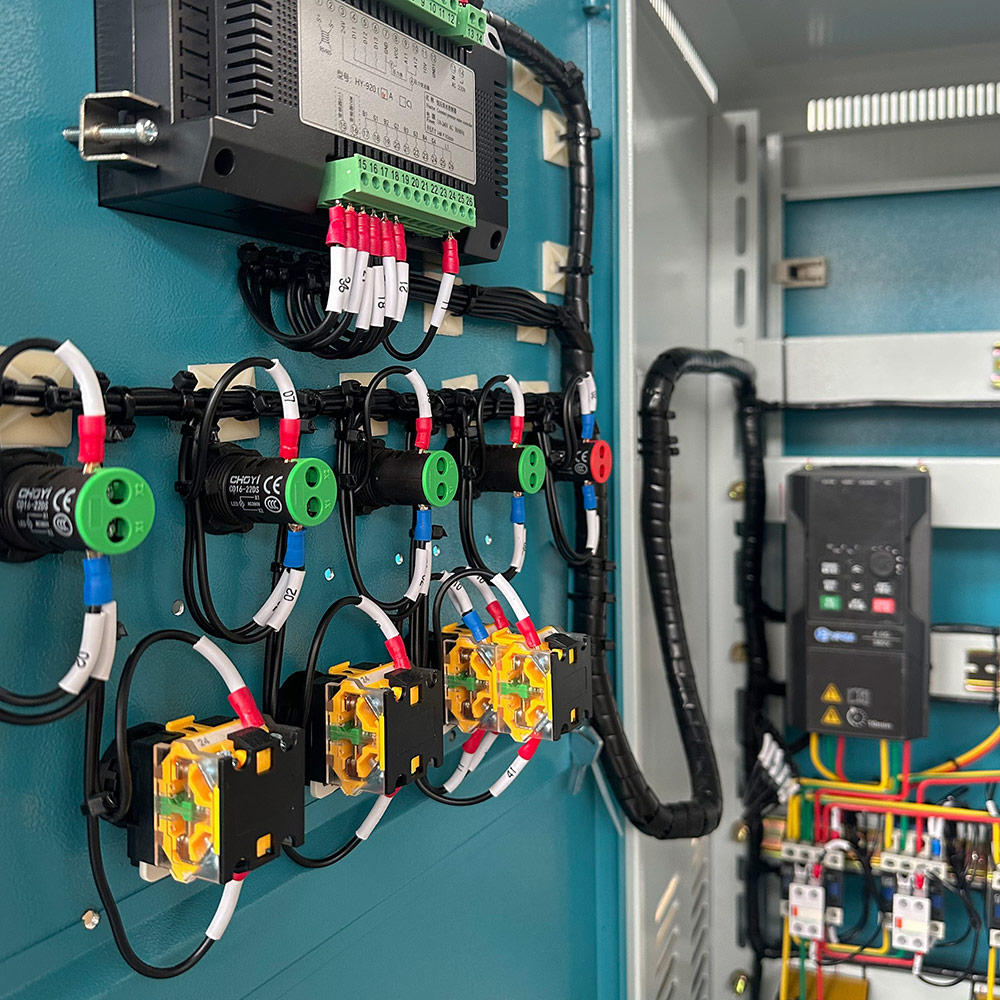

Key features and components of a soft starter cabinet:
Soft starter: The main component that gradually increases voltage to the motor, ensuring a smooth start-up process.
Circuit breaker or fuses: Provides short circuit and overload protection for the entire system.
Bypass contactor: Allows the motor to run directly on line power after the starting process is complete, improving efficiency.

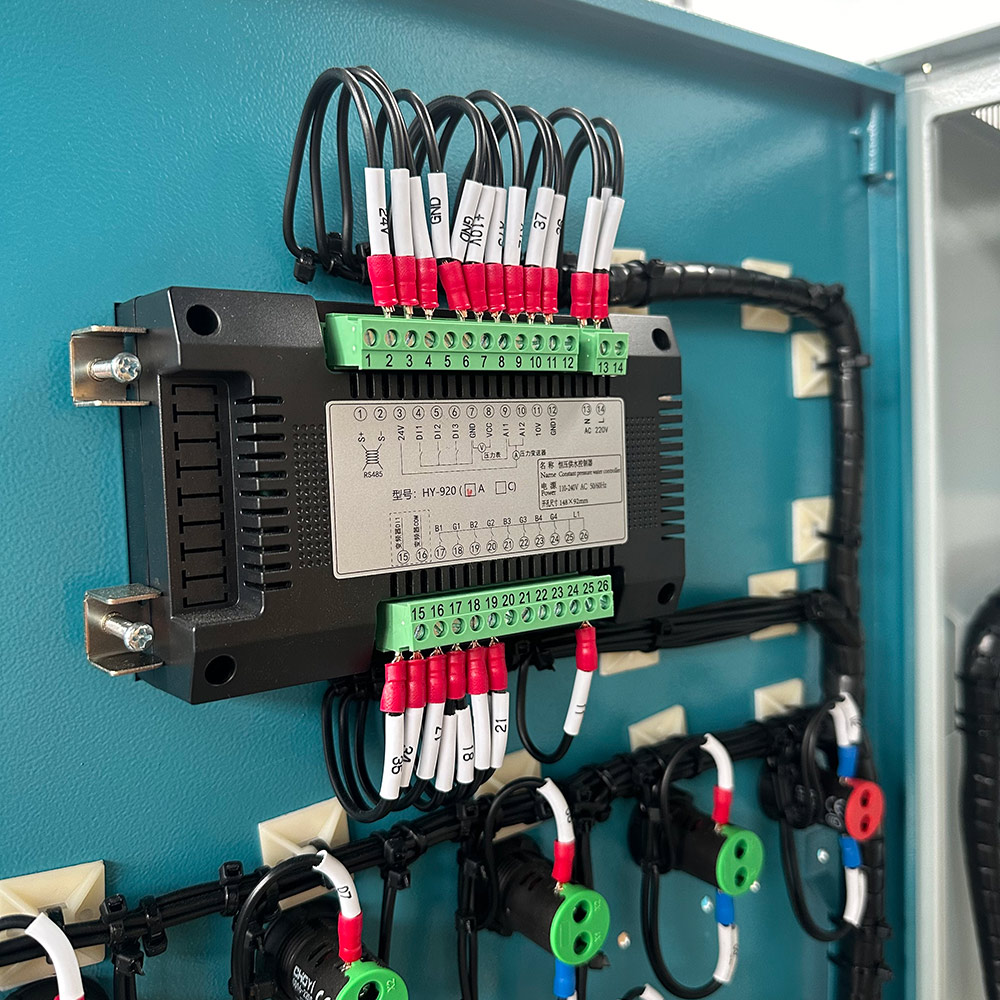

Control circuit: Includes relays, timers, and other control components for proper sequencing and operation.

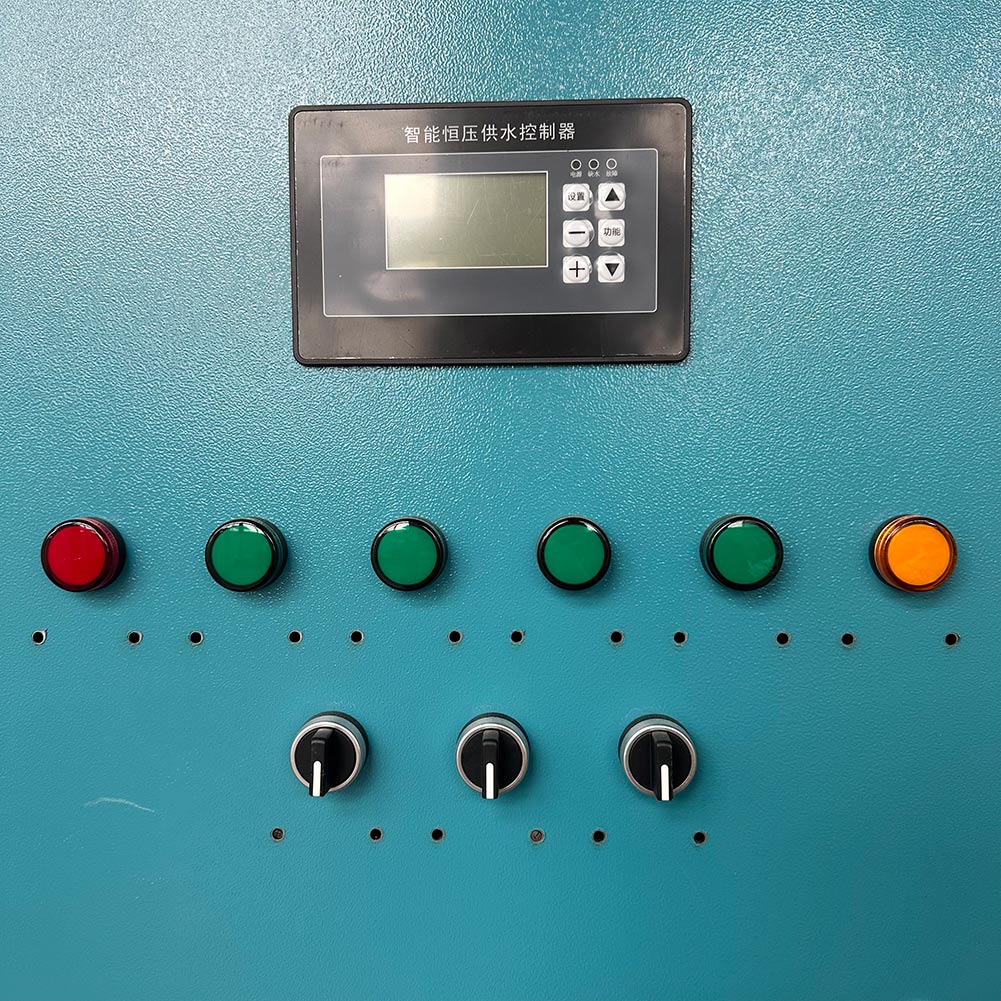

Human Machine Interface (HMI): Often includes a display and buttons for monitoring and adjusting parameters.
Power and control terminals: For connecting incoming power supply, motor leads, and control wiring.
Cooling system: May include fans or air conditioning to maintain optimal operating temperature.
Enclosure: Typically a metal cabinet that protects the internal components from environmental factors and provides safety for operators.
Benefits of using a soft starter cabinet:
Reduced mechanical stress on the motor and driven equipment during start-up.
Lower initial current draw, reducing stress on the electrical supply system.
Improved power factor during motor starting.
Programmable acceleration and deceleration ramps for optimal performance.
Motor protection features such as overload, phase loss, and phase reversal protection.
Potential energy savings compared to other starting methods.
Applications:
Soft starter cabinets are commonly used in various industries, including:
Water and wastewater treatment plants
HVAC systems
Mining and mineral processing
Oil and gas facilities
Manufacturing and processing plants
Conveyor systems
