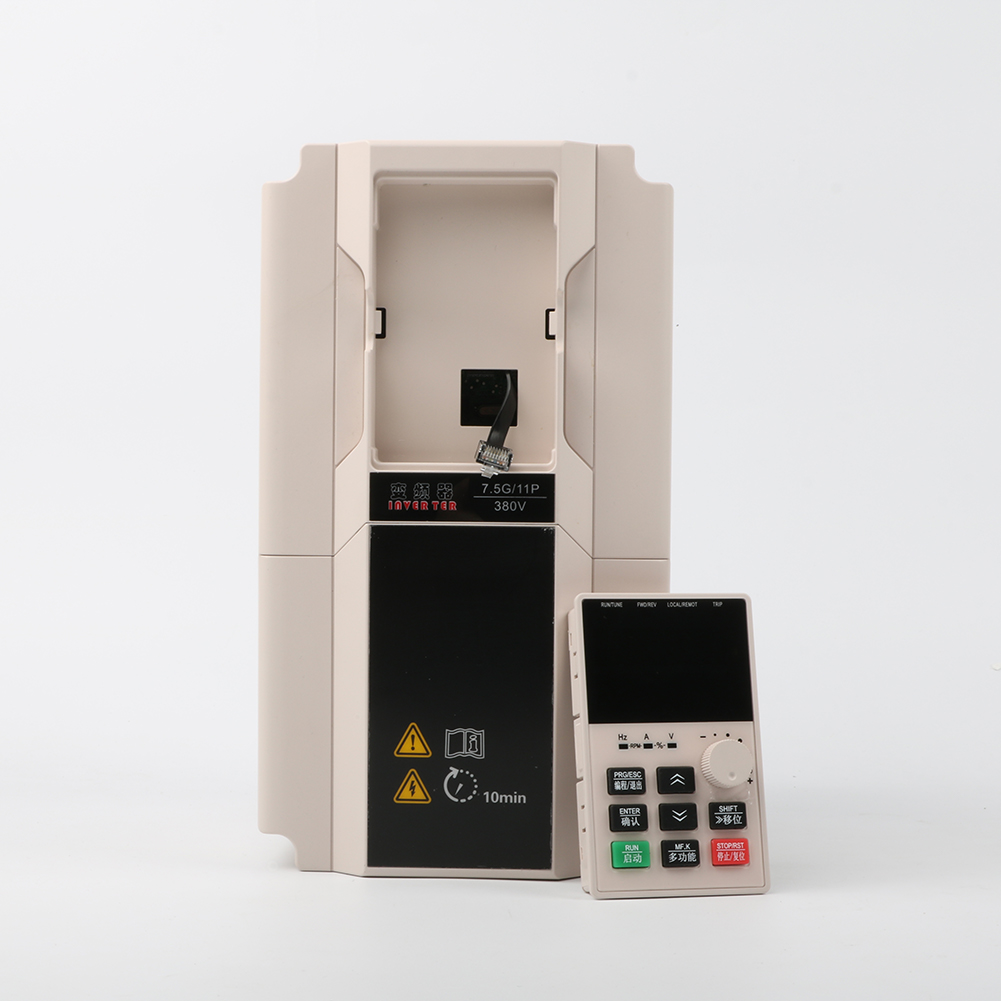

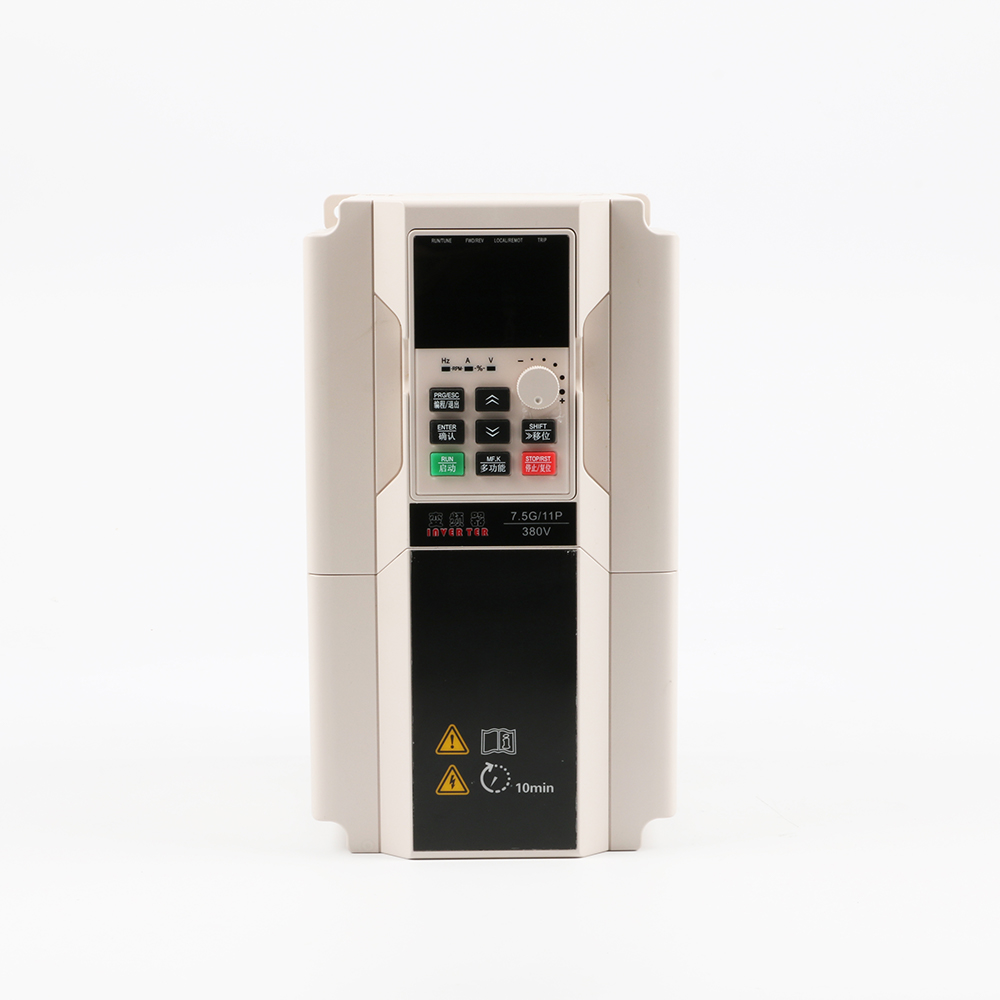

A Rotary Frequency Converter for Water Pump Control is a specialized device designed to regulate the speed and performance of water pumps in various applications. This technology combines the principles of rotary machinery with electronic frequency control to achieve efficient and precise management of water pumping systems.
Data sheet:
Product Name | General Purpose Vector Frequency Converter |
Power Specifications | 0.75KW - 22KW |
Rated Voltage | 380V |
Input Voltage | ±15% |
Input Frequency | 50Hz |

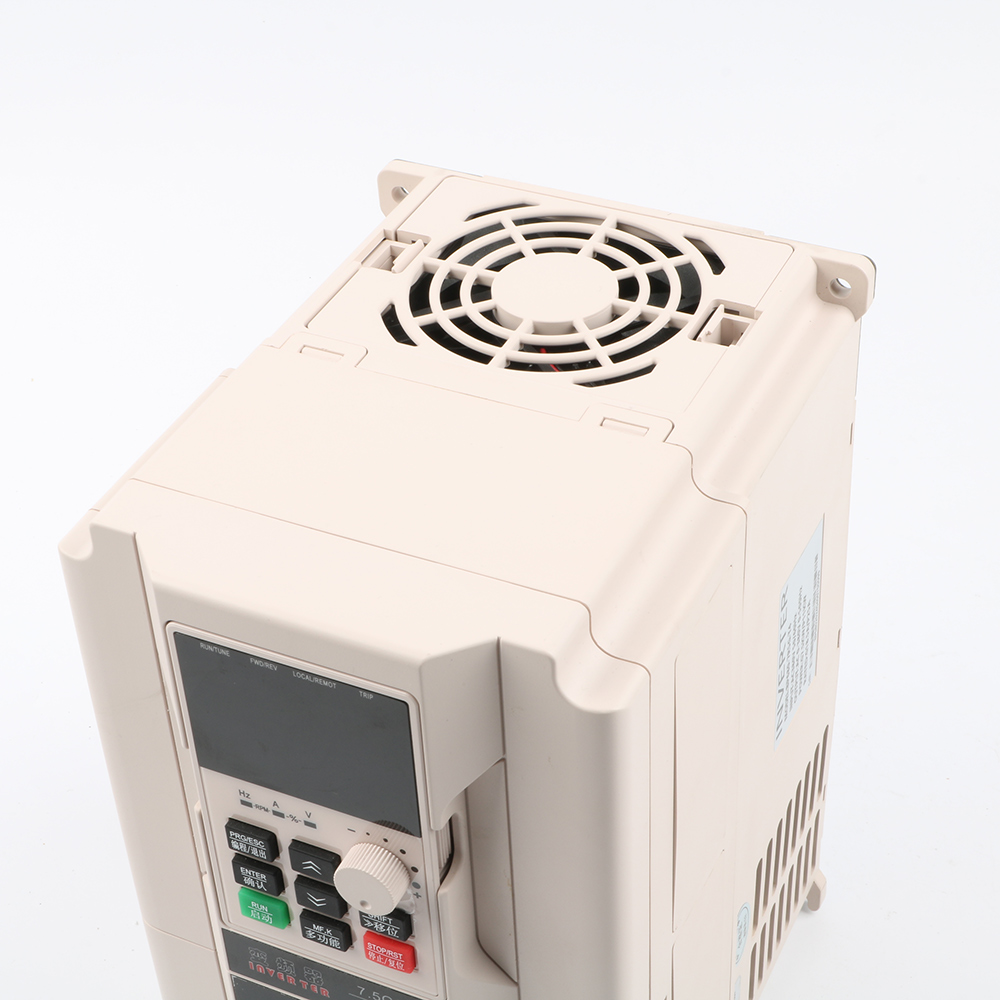

Cooling Level | Air-cooled with fan control |
Low Frequency Output | 0-300Hz |
High Frequency Output | 0-3000Hz |
Control Mode | V/F control, advanced V/F control, V/F separation control, current vector control |
Protection | Over-current, over-voltage and under-voltage, module fault, over-heat, short circuit, input and output lack of phase, abnormal motor parameter regulation, electronic thermal relay, ect. |
Key features and benefits:
Variable Speed Control: Allows for adjustment of pump speed to match specific flow requirements, optimizing energy consumption and reducing wear on the pump.
Energy Efficiency: By matching pump output to actual demand, these converters can significantly reduce energy costs associated with water pumping.
Soft Start and Stop: Gradually increases or decreases pump speed, reducing mechanical stress and water hammer effects, thereby extending equipment life.
Pressure Regulation: Maintains consistent water pressure by automatically adjusting pump speed in response to demand fluctuations.
Remote Monitoring and Control: Many models offer integration with SCADA systems or remote access capabilities for convenient management.
Protection Features: Includes safeguards against dry running, overload, and other potential pump hazards.
Improved System Reliability: By reducing stress on the pump and associated components, these converters can enhance overall system longevity.
Applications:
Municipal water supply systems
Irrigation in agriculture
Industrial process water management
Building water supply and pressure boosting
Wastewater treatment plants
Cooling towers in HVAC systems
Installation Dimension:
Model | Rated Power | Install Size | Mounting Aperture | ||||
Height(H) | Width(W) | Deep(D) | High(B) | Wide(A) | |||
BP680-0R75-T4 | 0.75KW | 186 | 96 | 145 | 173 | 86 | M4 |
BP680-1R5-T4 | 1.5KW | 186 | 96 | 145 | 173 | 86 | M4 |
BP680-2R2-T4 | 2.2KW | 186 | 96 | 145 | 173 | 86 | M4 |
BP680-3R0-T4 | 3.0KW | 186 | 96 | 145 | 173 | 86 | M4 |
BP680-4R0-T4 | 4.0KW | 188 | 127 | 185 | 175 | 115 | M4 |
BP680-5R5-T4 | 5.5KW | 258 | 145 | 195 | 240 | 130 | M5 |
BP680-7R5-T4 | 7.5KW | 258 | 145 | 195 | 240 | 130 | M5 |
BP680-011G-T4 | 11KW | 258 | 145 | 195 | 240 | 130 | M5 |
BP680-015G-T4 | 15KW | 320 | 170 | 220 | 300 | 150 | M5 |
BP680-018G-T4 | 18.5KW | 320 | 170 | 220 | 300 | 150 | M5 |
BP680-022G-T4 | 22KW | 320 | 170 | 220 | 300 | 150 | M5 |
Rotary Frequency Converters for Water Pump Control are particularly valuable in scenarios where water demand fluctuates, as they allow for precise matching of pump output to actual needs. This results in more efficient operation, reduced energy consumption, and extended equipment life compared to traditional fixed-speed pump systems.
When selecting a Rotary Frequency Converter for water pump applications, factors to consider include the pump's power rating, required flow rates, pressure requirements, and the specific characteristics of the water system being controlled.
