A Static Frequency Converter is a device used to convert the frequency of an electrical power source to match the requirements of a load. When it comes to 3-phase motors, SFCs play a critical role in enabling the motors to operate efficiently under different conditions.
Data sheet:
Product Name | General Purpose Vector Frequency Converter |
Power Specifications | 0.75KW - 22KW |
Rated Voltage | 380V |
Input Voltage | ±15% |
Input Frequency | 50Hz |
Cooling Level | Air-cooled with fan control |
Low Frequency Output | 0-300Hz |
High Frequency Output | 0-3000Hz |
Control Mode | V/F control, advanced V/F control, V/F separation control, current vector control |
Protection | Over-current, over-voltage and under-voltage, module fault, over-heat, short circuit, input and output lack of phase, abnormal motor parameter regulation, electronic thermal relay, ect. |
Functionality and Working Principle
1. Conversion Process:
- Rectification: The SFC first converts the incoming AC power (alternating current) to DC power (direct current) through a rectifier.
- Inversion: The DC power is then converted back to AC power with the desired frequency using an inverter.
2. Control and Modulation:
- Pulse Width Modulation (PWM): This technique is often employed to achieve precise control over the output frequency and voltage.
- Microcontroller or DSP Control: Advanced SFCs utilize digital control systems for real-time adjustments and optimization.
3. Harmonic Filtering: To ensure smooth operation and reduce electrical noise, SFCs include filters that mitigate harmonics generated during the conversion process.
Benefits of Using SFCs for 3-Phase Motors
1. Energy Efficiency:
- SFCs allow motors to operate at optimal speeds, reducing energy consumption and improving overall efficiency.
2. Variable Speed Control:
- They enable precise control of motor speed, which is crucial for applications requiring varying speeds and torque, such as conveyors, pumps, and fans.
3. Soft Starting:
- By gradually increasing the motor speed, SFCs reduce mechanical stress and electrical surges, extending the lifespan of the motor and associated machinery.
4. Adaptability:
- SFCs can adjust the motor's operational frequency to match different power sources, making them versatile in various industrial environments.
Applications
1. Industrial Automation:
- In manufacturing plants, SFCs are used to control the speed of assembly line motors, ensuring synchronization and efficiency.
2. HVAC Systems:
- Heating, Ventilation, and Air Conditioning systems benefit from the precise control of fan and compressor speeds provided by SFCs.
3. Renewable Energy Systems:
- SFCs are essential in wind and hydroelectric power systems, where they help convert variable-frequency power to a stable grid frequency.
4. Marine and Aerospace:
- These industries use SFCs to manage power systems on ships and aircraft, where space and weight constraints demand efficient and reliable power conversion.
Technical Specifications
- Input Voltage and Frequency: SFCs are designed to handle various input voltages (typically 230V, 400V, or 480V) and frequencies (50Hz or 60Hz).
- Output Frequency Range: They can provide a wide range of output frequencies, usually from 0 Hz up to 400 Hz, depending on the application.
- Power Rating: Available in different power ratings, from a few kilowatts to several megawatts, to suit different motor sizes and load requirements.
- Efficiency: Modern SFCs achieve high efficiencies, often above 95%, reducing energy losses during conversion.
Conclusion
Static Frequency Converters are integral components in the modern industrial landscape, enhancing the performance and efficiency of 3-phase motors across various applications. By converting and controlling electrical frequency with precision, they provide significant operational benefits, from energy savings to improved process control. Whether in industrial automation, HVAC systems, renewable energy, or transport sectors, SFCs ensure that motors operate optimally and reliably.

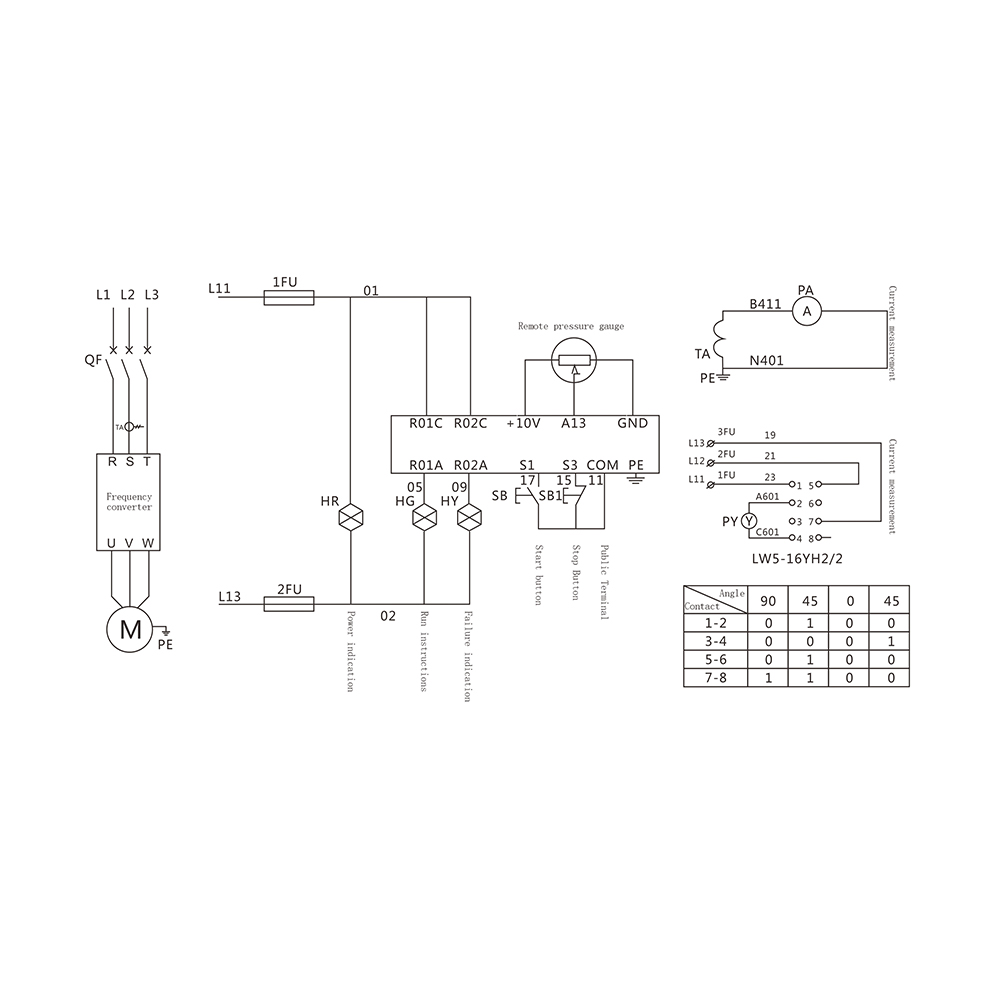

Diagram:
