Electric motors are essential in industrial applications, powering machinery in sectors such as manufacturing, HVAC, water treatment, mining, and agriculture. However, one often overlooked aspect of motor operation is how the motor starts. Direct starting of motors can cause high inrush current, mechanical stress, and system instability. To avoid these problems, many industries turn to a motor control solution known as the Soft Starter.
A Soft Starter ensures a smooth, gradual increase in motor speed by controlling the voltage applied during startup. This process reduces electrical and mechanical stress, protects the motor, extends equipment lifespan, and enhances energy efficiency.
A Soft Starter is an electronic motor controller used to manage the voltage and torque applied to an AC motor during startup and stopping phases. Unlike traditional motor starters that immediately apply full voltage to the motor, a Soft Starter ramps up the voltage gradually. This enables a smoother acceleration and minimizes strain on the motor and mechanical system.
Typically used with three-phase induction motors, Soft Starters help reduce inrush current to as low as two to three times the rated current (as opposed to six to eight times in direct-on-line starts). This is especially important in applications where power quality and equipment reliability are critical.
The core working principle of a Soft Starter lies in its ability to control voltage using semiconductor devices—usually thyristors or silicon-controlled rectifiers (SCRs). These components modulate the voltage waveform by adjusting the phase angle. At startup, a lower voltage is applied to the motor, which gradually increases over time, allowing for a soft, controlled acceleration.
Once the motor reaches its full speed, the Soft Starter often switches to a bypass mode using an internal or external contactor. This reduces internal heat buildup and improves system efficiency during steady-state operation. Some advanced Soft Starters also offer a “soft stop” feature, which slowly decreases the voltage to gently decelerate the motor.
Soft Starters provide a wide range of benefits that make them an indispensable component in motor-driven systems.
By gradually increasing voltage, Soft Starters lower the peak current drawn at startup. This prevents voltage dips in the power supply and reduces strain on electrical components.
Smooth acceleration minimizes sudden torque and mechanical shock to gears, belts, chains, pumps, and compressors, extending their service life.
Although not designed primarily for continuous energy savings like variable frequency drives (VFDs), Soft Starters reduce energy consumption during startup and reduce the need for oversizing electrical infrastructure.
Controlled starting and stopping conditions help prevent overheating, insulation wear, and premature motor failure.
Compared to VFDs, Soft Starters are more compact, simpler to install, and more affordable—making them an ideal choice for fixed-speed motor applications.
To meet diverse industrial needs, Soft Starters come in several configurations and technological levels. The following are the most commonly used types.
A Solid State Soft Starter uses purely electronic components for controlling voltage and current. With no moving parts, it offers high reliability, consistent performance, and long operational life. This type is ideal for high-frequency starts and environments requiring low maintenance.
Solid State Soft Starters are often equipped with advanced features such as overload protection, phase imbalance detection, built-in diagnostics, and programmable start/stop curves. They are widely used in conveyor systems, crushers, and high-demand industrial applications.
The AC Soft Starter is designed specifically for alternating current motors. It’s a general-purpose motor controller suitable for many medium-load applications. AC Soft Starters are most commonly used in fans, pumps, blowers, and compressors.
They offer simplicity, reliability, and a good balance between functionality and cost, making them popular in commercial and light-industrial installations.
An Industrial Soft Starter is a high-performance device intended for large motors and heavy-duty applications. These units typically feature rugged construction, enhanced thermal management, and a wide range of programmable parameters.
Typical industries using Industrial Soft Starters include mining and quarrying, oil and gas extraction, steel and cement manufacturing, and food and beverage processing. These starters handle large motor loads with ease, reducing startup shock and improving the safety and longevity of critical machinery.
The HVAC Soft Starter is tailored for motors in heating, ventilation, and air conditioning systems. These systems often require frequent starts and operate under varying loads.
HVAC Soft Starters help minimize current spikes and mechanical noise during startup. They are often installed in commercial chillers and compressors, rooftop HVAC units, building air handlers, and cooling tower fans. By improving efficiency and reducing system disturbances, they contribute to quieter and more stable climate control.

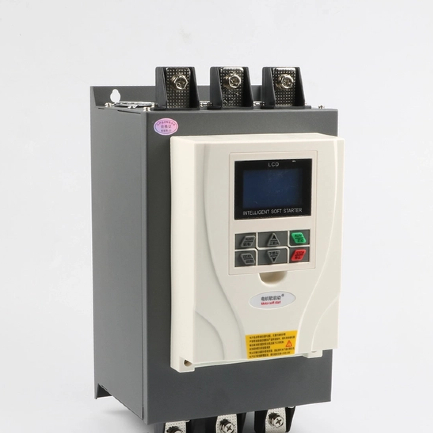

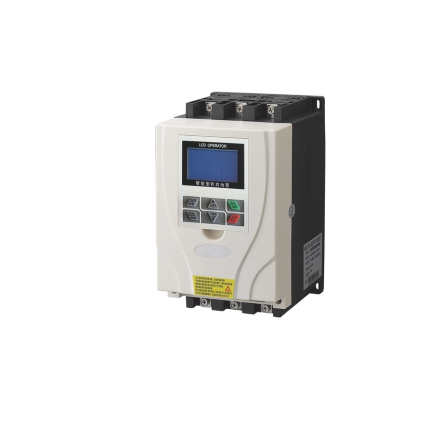

The Intelligent Digital Soft Starter represents the latest innovation in motor control. These smart devices integrate advanced microprocessors and communication protocols that allow seamless integration with digital automation platforms.
Key features of intelligent starters include real-time performance monitoring, digital displays for configuration and status, Ethernet/Modbus/Profibus communication, remote diagnostics and control, and alarm and fault memory logs. These are ideal for smart factories, water treatment facilities, and advanced manufacturing where uptime and data insight are critical.
Soft Starters are used across a wide range of industries where smooth motor startup and load control are necessary. Common applications include water pumps and booster systems, fans, blowers, and ventilation equipment, compressors and refrigeration systems, crushers, mixers, and grinders, conveyors and packaging lines, and HVAC chillers and rooftop units.
In these applications, Soft Starters ensure smoother operation, prevent equipment damage, and lower overall operational costs.
Selecting the appropriate Soft Starter involves assessing several key factors such as motor specifications including power rating, voltage, frequency, and current; load type such as constant torque (conveyors) versus variable torque (pumps/fans); start and stop frequency; environmental conditions like temperature, humidity, dust, and vibration; and control requirements such as the need for communication, remote control, or integration.
If your system demands simple voltage ramping, a standard AC or Solid State Soft Starter may be sufficient. However, if advanced diagnostics, programmable logic, or communication are needed, an Intelligent Digital Soft Starter is the best choice.
When it comes to sourcing high-quality, durable, and efficient Soft Starters, Yinanelec stands out as a trusted manufacturer and global exporter of industrial motor control solutions.
Yinanelec offers a wide selection of Soft Starters, including AC Soft Starters, Solid State Soft Starters, Intelligent Digital Soft Starters, and HVAC and Industrial models.
Each product is engineered to meet international quality standards, equipped with robust protection features, and optimized for energy-efficient performance.
Key reasons to choose Yinanelec include years of experience serving clients in manufacturing, automation, and energy sectors, customizable solutions tailored to specific motor sizes and applications, strong technical support and fast response after-sales service, and global shipping capabilities with multilingual customer service.
To explore their full product range and find the ideal Soft Starter for your needs, visit www.yinanelec.com today.
Soft Starters are essential in modern motor control systems. Whether you are working in industrial automation, HVAC, water management, or manufacturing, these devices offer a safe, efficient, and cost-effective way to manage motor startup and shutdown.
From basic AC Soft Starters to advanced Intelligent Digital Soft Starters, each type is designed to meet specific operational requirements. By understanding how Soft Starters work and where they excel, you can make informed decisions that protect your motors, reduce maintenance, and improve system reliability.
For high-performance Soft Starter solutions, backed by technical expertise and proven reliability, Yinanelec is your go-to partner. Explore more at www.yinanelec.com and take the first step toward smarter, smoother motor control.
