I. Definition and Basic Function

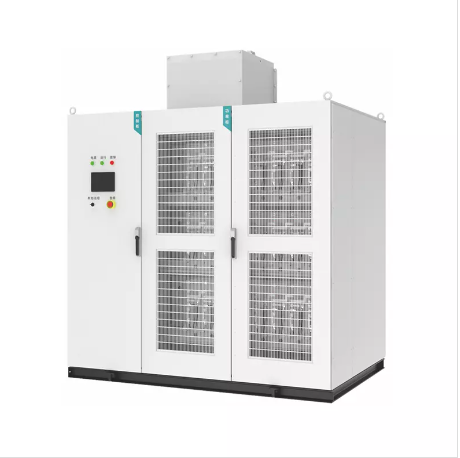

A high - voltage frequency converter is a power - electronic device designed to control the speed and torque of high - voltage motors. It converts the fixed - frequency and fixed - voltage input power (usually from the power grid) into an adjustable - frequency and adjustable - voltage output power supply for high - voltage induction motors or synchronous motors. By varying the output frequency, it can precisely regulate the rotational speed of the motor, which is of great significance for energy - saving, process control, and improving the performance of motor - driven systems.
II. Key Components and Working Principle
Rectifier Section
It typically uses diode or thyristor - based rectifiers to convert the incoming high - voltage alternating current (AC) into direct current (DC). The rectifier smoothens the input waveform and provides a relatively stable DC bus voltage.
DC Link
The DC link serves as an energy storage and buffer between the rectifier and the inverter. It usually consists of capacitors to store electrical energy and maintain a stable DC voltage level.
Inverter Section
The inverter is the core component that converts the DC power from the DC link back into AC power with a variable frequency and voltage. It uses insulated - gate bipolar transistors (IGBTs) or other power semiconductor devices. By controlling the switching frequency and pattern of these devices, the inverter can generate an AC output waveform with the desired frequency and voltage characteristics to drive the high - voltage motor.
III. Advantages
Energy - Saving
In many industrial applications, such as pumps, fans, and compressors, high - voltage motors often operate at a fixed speed without the need for full - load operation. High - voltage frequency converters can adjust the motor speed according to the actual load requirements, reducing energy consumption significantly. For example, in a large - scale water pumping station, by adjusting the pump speed based on the water demand, a substantial amount of electricity can be saved.
Soft - Start and Soft - Stop
Traditional direct - on - line starting of high - voltage motors can cause large inrush currents, which may damage the motor windings and other electrical components in the power grid. High - voltage frequency converters enable a soft - start function, gradually increasing the motor voltage and frequency from zero to the rated value. This not only reduces the starting current but also minimizes mechanical stress on the motor and connected equipment. Similarly, during shutdown, a soft - stop can be implemented to avoid sudden stops that could cause water hammer in pipelines or other mechanical shocks.
Improved Process Control
In industrial processes where precise control of motor - driven equipment is required, such as in textile manufacturing, paper mills, or conveyor systems, high - voltage frequency converters offer accurate speed control. This allows for better product quality, as the speed of motors driving rollers, spindles, or conveyors can be adjusted precisely to meet the production requirements.
IV. Applications
Industrial Sector
In the mining industry, high - voltage frequency converters are used to drive large - scale mine hoist motors, crushers, and ventilation fans. In the metallurgical industry, they are applied to electric arc furnaces, rolling mills, and blower motors. For example, in an electric arc furnace, the frequency converter can adjust the power input to the furnace electrodes, optimizing the melting process.
Power Generation and Transmission
In power plants, high - voltage frequency converters can be used for boiler feed pumps, induced draft fans, and condensate pumps. In the field of power transmission, they are used for high - voltage variable - speed drives in flexible AC transmission systems (FACTS), helping to regulate power flow and improve grid stability.
Municipal and Building Facilities
In large - scale sewage treatment plants, high - voltage frequency converters are used to drive water pumps and aeration fans. In high - rise buildings, they can be used for elevator motors and air - conditioning chillers, providing energy - efficient operation and better performance control.
In conclusion, high - voltage frequency converters play a crucial role in modern industrial and energy - related applications, offering a wide range of benefits in terms of energy - saving, performance improvement, and process control for high - voltage motor - driven systems.
I. Definition and Basic Function
A high - voltage frequency converter is a power - electronic device designed to control the speed and torque of high - voltage motors. It converts the fixed - frequency and fixed - voltage input power (usually from the power grid) into an adjustable - frequency and adjustable - voltage output power supply for high - voltage induction motors or synchronous motors. By varying the output frequency, it can precisely regulate the rotational speed of the motor, which is of great significance for energy - saving, process control, and improving the performance of motor - driven systems.
II. Key Components and Working Principle
Rectifier Section
It typically uses diode or thyristor - based rectifiers to convert the incoming high - voltage alternating current (AC) into direct current (DC). The rectifier smoothens the input waveform and provides a relatively stable DC bus voltage.
DC Link
The DC link serves as an energy storage and buffer between the rectifier and the inverter. It usually consists of capacitors to store electrical energy and maintain a stable DC voltage level.
Inverter Section
The inverter is the core component that converts the DC power from the DC link back into AC power with a variable frequency and voltage. It uses insulated - gate bipolar transistors (IGBTs) or other power semiconductor devices. By controlling the switching frequency and pattern of these devices, the inverter can generate an AC output waveform with the desired frequency and voltage characteristics to drive the high - voltage motor.
III. Advantages
Energy - Saving
In many industrial applications, such as pumps, fans, and compressors, high - voltage motors often operate at a fixed speed without the need for full - load operation. High - voltage frequency converters can adjust the motor speed according to the actual load requirements, reducing energy consumption significantly. For example, in a large - scale water pumping station, by adjusting the pump speed based on the water demand, a substantial amount of electricity can be saved.
Soft - Start and Soft - Stop
Traditional direct - on - line starting of high - voltage motors can cause large inrush currents, which may damage the motor windings and other electrical components in the power grid. High - voltage frequency converters enable a soft - start function, gradually increasing the motor voltage and frequency from zero to the rated value. This not only reduces the starting current but also minimizes mechanical stress on the motor and connected equipment. Similarly, during shutdown, a soft - stop can be implemented to avoid sudden stops that could cause water hammer in pipelines or other mechanical shocks.
Improved Process Control
In industrial processes where precise control of motor - driven equipment is required, such as in textile manufacturing, paper mills, or conveyor systems, high - voltage frequency converters offer accurate speed control. This allows for better product quality, as the speed of motors driving rollers, spindles, or conveyors can be adjusted precisely to meet the production requirements.
IV. Applications
Industrial Sector
In the mining industry, high - voltage frequency converters are used to drive large - scale mine hoist motors, crushers, and ventilation fans. In the metallurgical industry, they are applied to electric arc furnaces, rolling mills, and blower motors. For example, in an electric arc furnace, the frequency converter can adjust the power input to the furnace electrodes, optimizing the melting process.
Power Generation and Transmission
In power plants, high - voltage frequency converters can be used for boiler feed pumps, induced draft fans, and condensate pumps. In the field of power transmission, they are used for high - voltage variable - speed drives in flexible AC transmission systems (FACTS), helping to regulate power flow and improve grid stability.
Municipal and Building Facilities
In large - scale sewage treatment plants, high - voltage frequency converters are used to drive water pumps and aeration fans. In high - rise buildings, they can be used for elevator motors and air - conditioning chillers, providing energy - efficient operation and better performance control.
In conclusion, high - voltage frequency converters play a crucial role in modern industrial and energy - related applications, offering a wide range of benefits in terms of energy - saving, performance improvement, and process control for high - voltage motor - driven systems.
Project | Specifications | |
Input | Voltage Level | 3kV/3.3kV/6Kv/6.6kV/10kV/11kV |
Voltage Fluctuation Range | -15% ~ + 10% | |
Voltage Frequency | 50/60Hz, 5% | |
Power Factor | ≥ 0.97 (Full Load) | |
System Efficiency | ≥ 96% (Full Load) | |
Current Harmonics | ≤4% | |
Output | Voltage Range | 0~ Rated input voltage |
Frequency Range | 0~ 120Hz (Customizable) | |
Current Harmonics | ≤4% | |
Control the power supply | Voltage Range | 3 Phase 4 wires, 380V, ±10%, 50/60Hz |
Nameplate Capacity | Not less than 10kVA | |
Control performance | Control Mode | V/F Control; No PG vector control (SVC); PG vector control (FVC) |
Speed Ratio | 1:50 (VF); 1:100 (SVC); 1:200 (VC) | |
Speed Control Accuracy | ±1% (VF); ±0.4% (SVC); ±0.2% (VC) | |
Torque response time | < 200ms (SVC); <100ms (VC) | |
Starting torque | 0.5Hz 150% Rated torque(SVC); 0 Hz 180% Rated torque (VC) | |
Overload capacity | 120%, 60S | |
Acceleration and deceleration time | 0-3600s(Customizable) | |
User terminal | Switch qty input | 8-way digital input |
Switch qty output | 8-way digital output | |
Replay output | 8-way relay output | |
Analog input | Route 4: AI1, AI2, AI3, AI4; -10 ~ +10v/0 ~20mA | |
Analog output | Route 5: AO1, AO2, AO3,AO4, AO5: 0~ +10V/0~ 20mA | |
Protection function | System protection | Over-current, over-voltage, under-voltage, motor overload, inverter onverload, lack of phase, overheating, temperature control instrument failure, access control failure, communication failure. |
Unit protection | Under voltage, over voltage, power supply, over heat, input missing phase, module failure, power failure, communication failure, bypass failure, etc. | |
Other | Human computer interaction | Touch Screen |
Means of communication | Support Modbus Protocol, CANopen, Profibus DP, Profinet and Ethernet options. | |
Instalation mode | Cabinet Installation | |
Protection level | IP30 | |
Noise level | ≤75dB | |
The way in and out of the line | In and out, other options | |
Cooling mode | Forced air cooling | |
Control the power supply | AC 380V ±10% | |
MTBF | 50000h | |
Ambient temperature | -5℃ ~ + 40℃, 40℃ The maximum operating temperature is 50℃ and the reduction capacity is 1.5% for each 1℃ increase | |
Ambient Humidity | 5%-95%, No condensation | |
Altitude | Less than 1000m, more than 1000m need to reduce the amount of use, every 100m increase, the amount of 1% | |
Storage enviroment | Should be stored in no dust, no direct sunlight, no flammable or corrosive gases, no oil pollution, no steam and vibration of the occasion. | |
Amplitude of vibration | 0.59g Below |
Project | Specifications | |
Input | Voltage Level | 3kV/3.3kV/6Kv/6.6kV/10kV/11kV |
Voltage Fluctuation Range | -15% ~ + 10% | |
Voltage Frequency | 50/60Hz, 5% | |
Power Factor | ≥ 0.97 (Full Load) | |
System Efficiency | ≥ 96% (Full Load) | |
Current Harmonics | ≤4% | |
Output | Voltage Range | 0~ Rated input voltage |
Frequency Range | 0~ 120Hz (Customizable) | |
Current Harmonics | ≤4% | |
Control the power supply | Voltage Range | 3 Phase 4 wires, 380V, ±10%, 50/60Hz |
Nameplate Capacity | Not less than 10kVA | |
Control performance | Control Mode | V/F Control; No PG vector control (SVC); PG vector control (FVC) |
Speed Ratio | 1:50 (VF); 1:100 (SVC); 1:200 (VC) | |
Speed Control Accuracy | ±1% (VF); ±0.4% (SVC); ±0.2% (VC) | |
Torque response time | < 200ms (SVC); <100ms (VC) | |
Starting torque | 0.5Hz 150% Rated torque(SVC); 0 Hz 180% Rated torque (VC) | |
Overload capacity | 120%, 60S | |
Acceleration and deceleration time | 0-3600s(Customizable) | |
User terminal | Switch qty input | 8-way digital input |
Switch qty output | 8-way digital output | |
Replay output | 8-way relay output | |
Analog input | Route 4: AI1, AI2, AI3, AI4; -10 ~ +10v/0 ~20mA | |
Analog output | Route 5: AO1, AO2, AO3,AO4, AO5: 0~ +10V/0~ 20mA | |
Protection function | System protection | Over-current, over-voltage, under-voltage, motor overload, inverter onverload, lack of phase, overheating, temperature control instrument failure, access control failure, communication failure. |
Unit protection | Under voltage, over voltage, power supply, over heat, input missing phase, module failure, power failure, communication failure, bypass failure, etc. | |
Other | Human computer interaction | Touch Screen |
Means of communication | Support Modbus Protocol, CANopen, Profibus DP, Profinet and Ethernet options. | |
Instalation mode | Cabinet Installation | |
Protection level | IP30 | |
Noise level | ≤75dB | |
The way in and out of the line | In and out, other options | |
Cooling mode | Forced air cooling | |
Control the power supply | AC 380V ±10% | |
MTBF | 50000h | |
Ambient temperature | -5℃ ~ + 40℃, 40℃ The maximum operating temperature is 50℃ and the reduction capacity is 1.5% for each 1℃ increase | |
Ambient Humidity | 5%-95%, No condensation | |
Altitude | Less than 1000m, more than 1000m need to reduce the amount of use, every 100m increase, the amount of 1% | |
Storage enviroment | Should be stored in no dust, no direct sunlight, no flammable or corrosive gases, no oil pollution, no steam and vibration of the occasion. | |
Amplitude of vibration | 0.59g Below |
3KV
Specification | Rated Power (kW) | Rated Current (A) | Size W*D*H (mm) | Weight (kg) |
H200-03-0280-D | 220 | 54 | 2100x1450x2000 | 1310 |
H200-03-0315-D | 250 | 61 | 2100x1450x2000 | 1350 |
H200-03-0355-D | 280 | 68 | 2100x1450x2000 | 1380 |
H200-03-0400-D | 315 | 77 | 2100x1450x2000 | 1400 |
H200-03-0450-D | 355 | 87 | 2100x1450x2000 | 1450 |
H200-03-0500-D | 400 | 96 | 2100x1450x2000 | 1550 |
H200-03-0560-D | 450 | 108 | 2700x1650x2000 | 1600 |
H200-03-0630-D | 500 | 121 | 2700x1650x2000 | 1680 |
H200-03-0710-D | 560 | 137 | 2700x1650x2000 | 1750 |
3.3KV
Specification | Rated Power (kW) | Rated Current (A) | Size W*D*H (mm) | Weight (kg) |
H200-33-0280-D | 220 | 49 | 2100x1450x2000 | 1330 |
H200-33-0315-D | 250 | 55 | 2100x1450x2000 | 1370 |
H200-33-0355-D | 280 | 62 | 2100x1450x2000 | 1400 |
H200-33-0400-D | 315 | 70 | 2100x1450x2000 | 1430 |
H200-33-0450-D | 355 | 79 | 2100x1450x2000 | 1480 |
H200-33-0500-D | 400 | 87 | 2100x1450x2000 | 1580 |
H200-33-0560-D | 450 | 98 | 2700x1650x2000 | 1630 |
H200-33-0630-D | 500 | 110 | 2700x1650x2000 | 1710 |
H200-33-0710-D | 560 | 124 | 2700x1650x2000 | 1790 |
H200-33-0800-D | 630 | 140 | 2700x1650x2000 | 1890 |
6KV
Specification | Rated Power (kW) | Rated Current (A) | Size W*D*H (mm) | Weight (kg) |
H200-06-0400-D | 315 | 38 | 2100x1450x2000 | 1740 |
H200-06-0450-D | 355 | 43 | 2100x1450x2000 | 1800 |
H200-06-0500-D | 400 | 48 | 2100x1450x2000 | 1920 |
H200-06-0560-D | 450 | 54 | 2100x1450x2000 | 1970 |
H200-06-0630-D | 500 | 61 | 2100x1450x2000 | 2060 |
H200-06-0710-D | 560 | 68 | 2100x1450x2000 | 2150 |
H200-06-0800-D | 630 | 77 | 2100x1450x2000 | 2200 |
H200-06-0900-D | 710 | 87 | 2100x1450x2000 | 2320 |
H200-06-1000-D | 800 | 96 | 2100x1450x2000 | 2410 |
H200-06-1120-D | 900 | 108 | 2700x1650x2000 | 2950 |
H200-06-1250-D | 1000 | 120 | 2700x1650x2000 | 2100 |
H200-06-1400-D | 1120 | 135 | 2700x1650x2000 | 3310 |
3KV
Specification | Rated Power (kW) | Rated Current (A) | Size W*D*H (mm) | Weight (kg) |
H200-03-0280-D | 220 | 54 | 2100x1450x2000 | 1310 |
H200-03-0315-D | 250 | 61 | 2100x1450x2000 | 1350 |
H200-03-0355-D | 280 | 68 | 2100x1450x2000 | 1380 |
H200-03-0400-D | 315 | 77 | 2100x1450x2000 | 1400 |
H200-03-0450-D | 355 | 87 | 2100x1450x2000 | 1450 |
H200-03-0500-D | 400 | 96 | 2100x1450x2000 | 1550 |
H200-03-0560-D | 450 | 108 | 2700x1650x2000 | 1600 |
H200-03-0630-D | 500 | 121 | 2700x1650x2000 | 1680 |
H200-03-0710-D | 560 | 137 | 2700x1650x2000 | 1750 |
3.3KV
Specification | Rated Power (kW) | Rated Current (A) | Size W*D*H (mm) | Weight (kg) |
H200-33-0280-D | 220 | 49 | 2100x1450x2000 | 1330 |
H200-33-0315-D | 250 | 55 | 2100x1450x2000 | 1370 |
H200-33-0355-D | 280 | 62 | 2100x1450x2000 | 1400 |
H200-33-0400-D | 315 | 70 | 2100x1450x2000 | 1430 |
H200-33-0450-D | 355 | 79 | 2100x1450x2000 | 1480 |
H200-33-0500-D | 400 | 87 | 2100x1450x2000 | 1580 |
H200-33-0560-D | 450 | 98 | 2700x1650x2000 | 1630 |
H200-33-0630-D | 500 | 110 | 2700x1650x2000 | 1710 |
H200-33-0710-D | 560 | 124 | 2700x1650x2000 | 1790 |
H200-33-0800-D | 630 | 140 | 2700x1650x2000 | 1890 |
6KV
Specification | Rated Power (kW) | Rated Current (A) | Size W*D*H (mm) | Weight (kg) |
H200-06-0400-D | 315 | 38 | 2100x1450x2000 | 1740 |
H200-06-0450-D | 355 | 43 | 2100x1450x2000 | 1800 |
H200-06-0500-D | 400 | 48 | 2100x1450x2000 | 1920 |
H200-06-0560-D | 450 | 54 | 2100x1450x2000 | 1970 |
H200-06-0630-D | 500 | 61 | 2100x1450x2000 | 2060 |
H200-06-0710-D | 560 | 68 | 2100x1450x2000 | 2150 |
H200-06-0800-D | 630 | 77 | 2100x1450x2000 | 2200 |
H200-06-0900-D | 710 | 87 | 2100x1450x2000 | 2320 |
H200-06-1000-D | 800 | 96 | 2100x1450x2000 | 2410 |
H200-06-1120-D | 900 | 108 | 2700x1650x2000 | 2950 |
H200-06-1250-D | 1000 | 120 | 2700x1650x2000 | 2100 |
H200-06-1400-D | 1120 | 135 | 2700x1650x2000 | 3310 |
