In the realm of electrical engineering and industrial applications, frequency converters play a pivotal role in the efficient and precise operation of various machinery and systems. As the demand for energy efficiency, precise control, and adaptability in electrical systems continues to grow, understanding the different types of frequency converters becomes crucial for businesses and professionals in the field. This article aims to provide a comprehensive overview of the different types of frequency converters, their functions, and their applications, offering valuable insights for those looking to optimize their electrical systems and make informed decisions about the best frequency converter solutions for their specific needs.
Frequency converters are electrical devices that convert alternating current (AC) power from one frequency to another. They are used in a wide range of applications, from small-scale systems like fans and pumps to large industrial machines. The primary function of a frequency converter is to control the speed of an electric motor by varying the frequency of the power supplied to it.
The operation of a frequency converter involves a few key steps. First, the incoming AC power is converted into direct current (DC) using a rectifier. This process involves the use of diodes or other rectifying devices to convert the AC power, which varies in amplitude and direction, into a unidirectional flow of current. Next, the DC power is transformed back into AC power at the desired frequency using an inverter. The inverter is typically composed of a series of transistors or other switching devices that can be rapidly turned on and off to create a new AC waveform at the desired frequency.
Frequency converters can be classified into two main categories: those that operate at a fixed frequency and those that can be programmed to operate at variable frequencies. Fixed-frequency converters are typically used in applications where the speed of the motor does not need to be adjusted frequently. On the other hand, variable-frequency converters are used in applications where precise control of the motor speed is required, such as in conveyor systems, fans, and pumps.
In addition to controlling motor speed, frequency converters can also be used to improve the efficiency of electrical systems. By matching the speed of the motor to the load, frequency converters can reduce energy consumption and minimize waste. This is particularly important in industrial applications, where large motors are used to drive heavy machinery.
Overall, frequency converters are essential components in modern electrical systems. They provide precise control of motor speed, improve energy efficiency, and enable the use of renewable energy sources. As technology continues to advance, frequency converters are becoming more sophisticated, offering even greater control and flexibility in a wide range of applications.
There are several types of frequency converters available on the market, each designed to meet specific needs and applications. The most common types include the static frequency converter, rotary frequency converter, and variable frequency drive (VFD).
The static frequency converter, also known as a power electronics-based converter, is a solid-state device that converts electrical power from one frequency to another without any moving parts. It uses power semiconductor devices such as diodes, transistors, and thyristors to achieve this conversion. Static frequency converters are known for their high efficiency, compact size, and low maintenance requirements. They are widely used in applications such as aerospace, marine propulsion, and industrial power systems.
The rotary frequency converter, on the other hand, is a mechanical device that converts electrical power from one frequency to another by using a rotating machine. It typically consists of an AC motor and an AC generator coupled together. The motor is driven by the incoming power supply, which causes the generator to produce power at the desired frequency. Rotary frequency converters are commonly used in applications where high power levels and low harmonic distortion are required, such as in large industrial plants and power generation facilities.

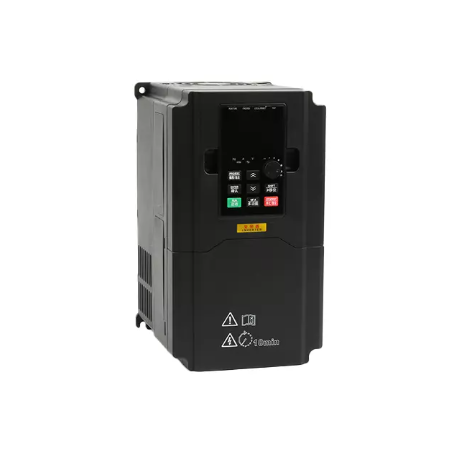

The variable frequency drive (VFD) is another type of frequency converter that is widely used in industrial applications. It is an electronic device that controls the speed and torque of an AC motor by varying the frequency and voltage of the power supplied to the motor. VFDs are used to optimize the performance of motors in applications such as pumps, fans, and conveyor systems. They are known for their energy-saving capabilities and ability to provide precise control over motor operation.
Each type of frequency converter has its own advantages and disadvantages, and the choice of which one to use depends on the specific requirements of the application. Static frequency converters are preferred for applications where high efficiency and compact size are important, while rotary frequency converters are suitable for applications that require high power levels and low harmonic distortion. VFDs are ideal for applications that require precise control over motor speed and torque.
When selecting a frequency converter, there are several key considerations to keep in mind. These include the power rating, input and output voltage, frequency range, efficiency, control features, and environmental factors.
The power rating of a frequency converter is an important factor to consider, as it determines the maximum load that the converter can handle. It is essential to choose a converter with a power rating that matches the requirements of the application. Undersizing the converter can lead to overheating and damage, while oversizing can result in unnecessary costs.
The input and output voltage of the frequency converter must also be compatible with the electrical system in which it will be installed. Most frequency converters are designed to operate at standard voltage levels, such as 230V, 400V, or 690V. It is crucial to select a converter that matches the voltage requirements of the application to ensure proper operation and avoid damage.
The frequency range of the converter is another important consideration, as it determines the range of motor speeds that can be achieved. A wider frequency range allows for greater flexibility in applications where precise control of motor speed is required.
Efficiency is a critical factor in the selection of frequency converters, as it directly impacts energy consumption and operating costs. Higher efficiency converters can result in significant energy savings over time, making them a more cost-effective option in the long run.
Control features are also an important consideration, as they determine the level of control and customization available. Some frequency converters offer advanced control features, such as vector control or direct torque control, which provide precise control over motor operation and performance.
Finally, environmental factors such as temperature, humidity, and dust levels should be taken into account when selecting a frequency converter. It is important to choose a converter that is designed to operate in the specific environmental conditions of the application to ensure reliable and efficient operation.
In conclusion, frequency converters are crucial components in modern industrial and commercial applications, providing precise control over motor speed and torque, improving energy efficiency, and enabling the use of renewable energy sources. Understanding the different types of frequency converters, their functions, and their applications is essential for businesses and professionals in the field to make informed decisions about the best frequency converter solutions for their specific needs. By carefully considering factors such as power rating, input and output voltage, frequency range, efficiency, control features, and environmental factors, businesses can optimize their electrical systems, reduce energy consumption, and improve overall performance. As technology continues to advance, the role of frequency converters in driving innovation and efficiency in various industries will only continue to grow.
