In industrial applications, controlling the start-up of motors is crucial to avoid mechanical stress and electrical issues. One of the most effective solutions for this is the Soft Starter. This device plays a vital role in reducing the initial inrush current and controlling the acceleration of motors. But how exactly does a Soft Starter work? This research paper delves into the operational principles, components, and applications of Soft Starters, providing a comprehensive understanding of their importance in modern industries. Additionally, we will explore how these devices contribute to energy efficiency and equipment longevity.
In this paper, we will also examine the differences between Soft Starters and other motor control devices, such as variable frequency drives (VFDs), and highlight the advantages of using Soft Starters in various industrial applications. For more detailed information about Soft Starters, you can visit the Soft Starter section on the Yinanelec website.

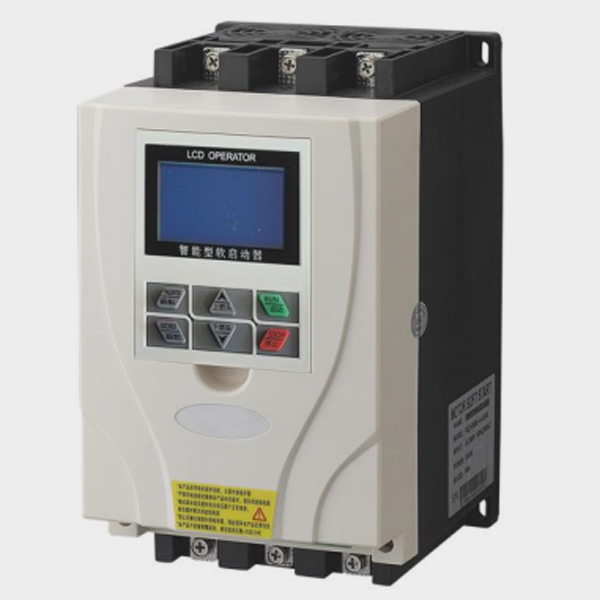

A Soft Starter is an electrical device that controls the acceleration and deceleration of an electric motor. Unlike traditional motor starters, which apply full voltage immediately, a Soft Starter gradually increases the voltage supplied to the motor, allowing it to start smoothly. This controlled start-up reduces the mechanical stress on the motor and the electrical stress on the power supply network.
The primary function of a Soft Starter is to limit the inrush current that occurs when a motor starts. This is achieved by gradually ramping up the voltage, which in turn reduces the torque and the current drawn by the motor. As a result, the motor starts more smoothly, which helps to extend its lifespan and reduce maintenance costs. For more details on the benefits of Soft Starters, you can explore the Soft Starter section on Yinanelec's website.
The basic operation of a Soft Starter revolves around controlling the voltage supplied to the motor. This is typically done using solid-state devices such as thyristors or silicon-controlled rectifiers (SCRs). These components allow the Soft Starter to gradually increase the voltage applied to the motor during start-up. The process can be broken down into three main phases:
Initial Start: The Soft Starter applies a reduced voltage to the motor, limiting the inrush current and reducing the torque.
Ramp-Up Phase: The voltage is gradually increased, allowing the motor to accelerate smoothly to its full speed.
Full Voltage Operation: Once the motor reaches its full speed, the Soft Starter applies full voltage, and the motor operates at its rated capacity.
This controlled start-up process not only reduces the mechanical stress on the motor but also minimizes the impact on the electrical network. By limiting the inrush current, the Soft Starter helps to prevent voltage drops and other electrical disturbances that can affect other equipment connected to the same power supply.
A Soft Starter typically consists of the following key components:
Thyristors or SCRs: These are the main components that control the voltage applied to the motor. They allow the Soft Starter to gradually increase the voltage during start-up.
Control Circuit: This circuit monitors the motor's speed and adjusts the voltage accordingly to ensure a smooth start.
Bypass Contactor: Once the motor reaches full speed, the bypass contactor closes, allowing full voltage to be applied to the motor. This reduces the heat generated by the thyristors and improves the efficiency of the system.
The combination of these components allows the Soft Starter to provide a controlled and efficient start-up process, reducing both mechanical and electrical stress on the motor and the power supply network.
Soft Starters are widely used in various industrial applications where controlling the start-up of motors is critical. Some common applications include:
Pumps: In pumping applications, Soft Starters help to prevent water hammer and reduce mechanical stress on the pump and piping system.
Fans: Soft Starters are used in fan applications to reduce the mechanical stress on the fan blades and the drive system.
Conveyors: In conveyor systems, Soft Starters help to prevent sudden jerks and mechanical stress on the conveyor belt and drive system.
Compressors: Soft Starters are used in compressor applications to reduce the mechanical stress on the compressor and the electrical stress on the power supply network.
These applications highlight the versatility and importance of Soft Starters in modern industrial systems. By providing a controlled start-up process, Soft Starters help to improve the efficiency and longevity of motors and other equipment.
While both Soft Starters and Variable Frequency Drives (VFDs) are used to control the start-up of motors, they operate in different ways and are suited to different applications. The key differences between the two devices are:
Function: A Soft Starter only controls the start-up and stop of the motor, while a VFD can control the motor's speed throughout its operation.
Cost: Soft Starters are generally less expensive than VFDs, making them a more cost-effective solution for applications where speed control is not required.
Complexity: VFDs are more complex devices that require more advanced control systems, while Soft Starters are simpler and easier to install and maintain.
For applications where speed control is not necessary, a Soft Starter is often the preferred solution due to its simplicity and cost-effectiveness. However, for applications where precise speed control is required, a VFD may be a better option.
In conclusion, Soft Starters play a crucial role in controlling the start-up of motors in industrial applications. By limiting the inrush current and providing a smooth acceleration, Soft Starters help to reduce mechanical and electrical stress, improve energy efficiency, and extend the lifespan of motors and other equipment. Their simplicity, cost-effectiveness, and versatility make them an essential component in many industrial systems.
Whether you're looking to improve the efficiency of your pumping system, reduce mechanical stress on your conveyor belt, or prevent electrical disturbances in your power supply network, a Soft Starter can provide the solution you need. For more information on Soft Starters, you can visit the Soft Starter section on the Yinanelec website.
