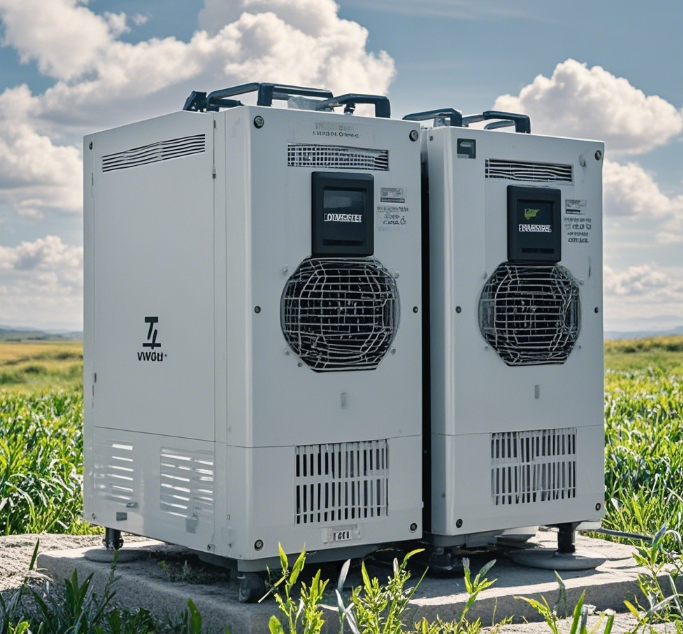

High voltage inverters are key components in modern electrical systems, playing a crucial role in converting direct current (DC) to alternating current (AC) at high voltages. This technology is essential for various applications, from renewable energy systems to industrial power supplies. Understanding the science behind high voltage inverters involves delving into their design, functionality, and the latest advancements that are shaping their future.
The operation of high voltage inverters is rooted in the conversion of DC to AC power. This process begins with the DC input, which is then transformed into a high-frequency AC signal using an oscillator. The high-frequency AC is subsequently stepped up to a higher voltage using a transformer. Finally, the AC output is rectified and filtered to produce a stable AC voltage suitable for various applications.
Inverters utilize different topologies, such as the H-bridge and full-bridge configurations, to achieve efficient conversion. The choice of topology affects the inverter’s efficiency, output waveform quality, and the complexity of the control system. Advanced modulation techniques, like pulse width modulation (PWM) and space vector modulation (SVM), are employed to improve the inverter’s performance by minimizing harmonic distortion and maximizing output voltage.
High voltage inverters are integral to numerous sectors, including renewable energy, industrial automation, and electric transportation. In the renewable energy sector, they convert the DC output of solar panels and wind turbines into AC power for grid integration or local consumption. Their ability to operate at high voltages makes them ideal for long-distance power transmission, reducing energy losses.
In industrial applications, high voltage inverters drive motors and other equipment, offering precise control over speed and torque. This capability enhances energy efficiency and reduces operational costs. Additionally, inverters are pivotal in electric transportation, powering electric vehicles (EVs) and facilitating the transition to sustainable mobility solutions.
Recent advancements in high voltage inverter technology have been driven by the need for greater efficiency, reliability, and integration with digital systems. Innovations in semiconductor materials, such as silicon carbide (SiC) and gallium nitride (GaN), have led to inverters that operate at higher voltages and frequencies, offering improved performance and reduced size.
Digital control systems have also transformed inverter design, enabling more sophisticated control strategies that enhance efficiency and adaptability. These systems facilitate the integration of inverters with smart grids and other digital infrastructure, paving the way for more intelligent and responsive power systems.
The future of high voltage inverters is closely tied to the ongoing transition towards renewable energy and the increasing demand for efficient power conversion. As the global energy landscape evolves, inverters will play a central role in facilitating the integration of diverse energy sources and improving the resilience of power systems.
Emerging trends such as the Internet of Things (IoT), artificial intelligence (AI), and advanced energy storage technologies are expected to further enhance the capabilities of high voltage inverters. These developments will enable more precise control, better predictive maintenance, and greater adaptability to changing energy demands and supply conditions.
